フレーム

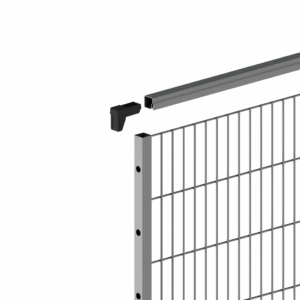

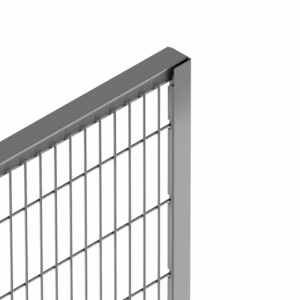

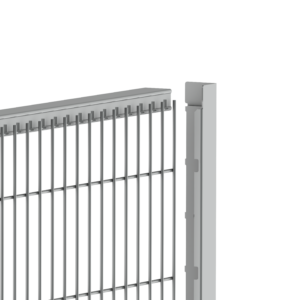

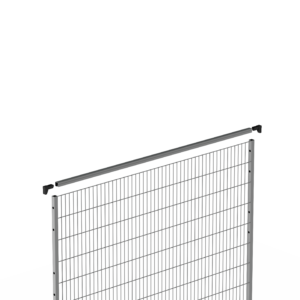

強度を損ねずに現場でパネルの高さ・幅をカスタム加工できる後付けフレーム。パネルを任意の高さ・幅に切断し、切断部にフレームを取り付けるだけのシンプルなソリューションです。当社のすべてのメッシュパネルに対応しています。 在庫品としてはグレーとブラックの2色をご用意しております。ご希望のRALカラーのご注文も承ります。 ポリカーボネート製パネルの高さ調整にもご利用いただけます。 この場合は、ポリカーボネート製パネルを必要な高さに切断したうえで、テープで本製品をパネル上部に取り付けてください。フレーム寸法は1,500mmですが、200mmから1,500mmのすべての標準パネルサイズに対応可能です。 在庫品としてはブラックをご用意しておりますが、ご希望のカラーでのご注文も承ります。
バリエーション
Art. Nr | Components |
---|---|
36801650 | Kit END 2500 |
36800435 | Kit END Rapid Fix |
30500941 | Cut profile ST L=2350 Width modification |
36800430 | Kit cut width |
36904550 | Kit Combine Height/Width |
31800875 | Cut profil PC panel 1500 |
36800831 | Cut prof. UX/ST30 L=800 |
36800821 | Cut prof. UX/ST30 L=700 |
36800811 | Cut prof. UX/ST30 L=300 |
36800871 | Cut prof. UX/ST30 L=500 |
36800801 | Cut prof. UX/ST30 L=200 |
36800861 | Cut prof. UX/ST30 L=1500 |
36800851 | Cut prof. UX/ST30 L=1200 |
36800841 | Cut prof. UX/ST30 L=1000 |
35800831 | Cut prof. UR/ST20 L=800 |
35800821 | Cut prof. UR/ST20 L=700 |
35800871 | Cut prof. UR/ST20 L=500 |
35800811 | Cut prof. UR/ST20 L=300 |
35800801 | Cut prof. UR/ST20 L=200 |
35800861 | Cut prof. UR/ST20 L=1500 |
35800851 | Cut prof. UR/ST20 L=1200 |
35800841 | Cut prof. UR/ST20 L=1000 |
30500921 | Cut profile ST L=2050 Width modification |
30500901 | Cut profile ST L=1250 Width modification |
ダウンロード
Name | ||
---|---|---|
Assembly Instructions - Kit Combine Height Width, 36904550.pdf |
Type
Assembly instructions |
ダウンロード |
Product Sheet - Cut profiles_MG.pdf |
Type
Product sheets |
ダウンロード |
Assembly Instruction_Cut_Profile_height_modification_ST20ST30_36700400_35700400_Ver002.pdf |
Type
Assembly instructions |
ダウンロード |
Assembly_Instruction_Kit_CUT_2500_ST_UR_UX.pdf |
Type
Assembly instructions |
ダウンロード |
Assembly Instruction - Kit CUT Rapid Fix.pdf |
Type
Assembly instructions |
ダウンロード |
Assembly instruction - Tape cut PC panel Kit 31700800, 31701500.pdf |
Type
Assembly instructions |
ダウンロード |
Assembly_instruction_End_2050_12450_ST20_ST30.pdf |
Type
Assembly instructions |
ダウンロード |
