선반 800kg
폴란드에는 직접 배송을 위한 표준 선반과 디바이더 재고를 보유하고 있으며 폭, 깊이, 높이 등 고객의 요구에 따라 맞춤형 솔루션도 제공합니다. 재고 보유: 적재 용량: 800kg/㎡ UDL 크기: 1100 x 890mm 메쉬 크기: 100 x 50 mm 색상: 사전 아연 도금
Variants
| Art. Nr | Components |
|---|---|
| 50530003 | Shelf 1100x890, 800kg/m2 0105x2893.PG, ANSI 500kg |
| 50530013 | Shelf 1100x890, 800kg/m2 0105.4656.PG, ANSI |
Our rapid prototyping process allows us to verify the customer’s needs and design the ideal solution for mesh shelving with dividers.

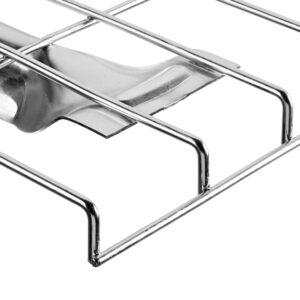

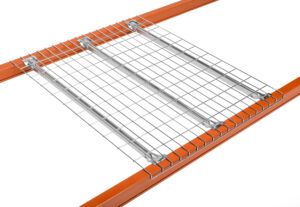

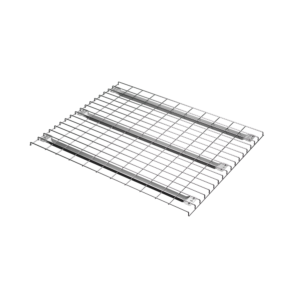

The 800 Kg mesh shelf is made of three omega support bars and welded wires.
The standard mesh aperture dimensions are 50x100 mm and the smallest customized mesh aperture is 25x25 mm.
All wire ends are rounded for a smooth finish, and there is also a safety wire in the front and back of the shelf to protect against injuries.
Only high-quality steel is used, with the grade of DX51D+Z. The omega profiles have a tensile strength of 270-500 MPa, and the wire tensile strength is between 600-700 MPa.
