Door UX500

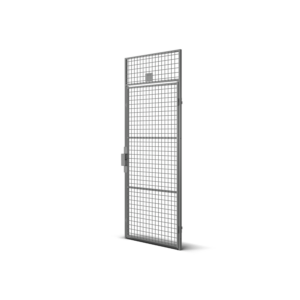

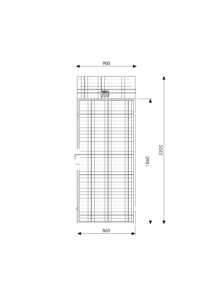

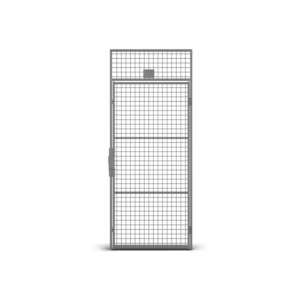

The Troax Safe UX500 is a door for padlock, designed to be used together with the mesh panel UX 550 and is suitable for storage areas in need of the highest level of protection and is part of a system with specially adapted installation fittings, like corner and wall profiles. The system has been tested and approved by the Swedish Theft Prevention Association (SSF) and is used in areas which are particularly exposed to break-in attempts. The door leaf has a 30x20 mm steel tube frame and two horizontal middle tubes to create strength and stability. Together with the 50x50 mesh aperture and the 5 mm wire thickness gives this a considerable impression of safety and can also live up to it. The door is 900 mm wide and supplied pre-assembled, ready for installation.
Variants
Finish on panels, posts and powder coated accessories has the last figure variants in ART. NO.
"1" = RAL 7037 Dusty Grey; "2" RAL 1018 Zink Yellow; "5" All other RAL colours or cut/welded; "6" RAL 9005 Jet Black, "8" Hot dip galvanized
| Art. Nr | Components | Width (mm) | Mesh size (mm) | Frame (mm) |
|---|---|---|---|---|
| 36095011 | Door UX500 P SSF 900 L | 900 | 50x50 | 30x20 |
| 36095001 | Door UX500 P SSF 900 R | 900 | 50x50 | 30x20 |
