Panel UR300

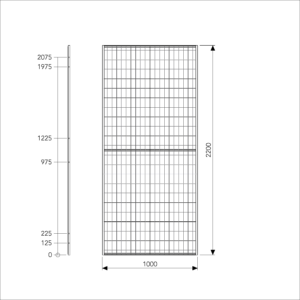

The UR300 panel system from Troax is a light-duty, modular mesh system that is suitable for creating added storage within a well-protected environment. The mesh, constructed from press welded 2.5 mm wires with mesh aperture 100x50 mm, is welded to a 19x19 mm tubular frame for added strength. The panel is available in 7 widths between 200 mm up to 1500 mm. The system is ideal for creating inner partitioning walls or roof within a secure storage application when used in conjunction with the Troax UR 350 & UX 450 panels. It can also be used on its own for applications where a less degree of security is required.
Facts
| Art. Nr | Components | Height (mm) | Width (mm) | Mesh size (mm) | Frame (mm) |
|---|---|---|---|---|---|
| 35080101 | Panel UR300 2200x800 | 2200 | 800 | 50x100 | 19x19 |
| 35020101 | Panel UR300 2200x200 | 2200 | 200 | 50x100 | 19x19 |
| 35100101 | Panel UR300 2200x1000 | 2200 | 1000 | 50x100 | 19x19 |
Finish on panels, posts and powder coated accessories has the last figure variants in ART. NO.
"1" = RAL 7037 Dusty Grey; "2" RAL 1018 Zink Yellow; "5" All other RAL colours or cut/welded; "6" RAL 9005 Jet Black, "8" Hot dip galvanized
