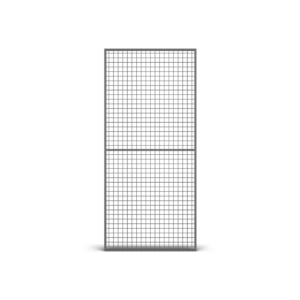

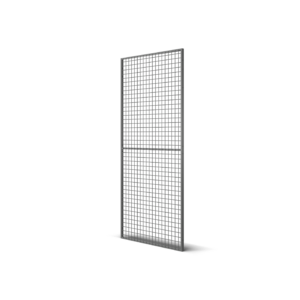

Panel UX550
Security was the main focus in the development of UX 550, our most advanced and secure mesh partition. The mesh, constructed from press welded 5 mm wires with mesh aperture 50x50 mm, is welded to a 30x20 mm tubular frame for added strength. The system has been tested and is approved in accordance with SSF 1990-06-30/B. UX 550 is primarily used in storage spaces in apartment buildings, cellars and attics, where there is a requirement for an extra high level of security. Troax Safe front wall can be complemented with inner partitioning walls from the UX 450 and UR 350 series, though a partitioning wall with UX 550 is the safest choice. The panel is available in 7 widths between 200 mm up to 1500 mm.
Facts

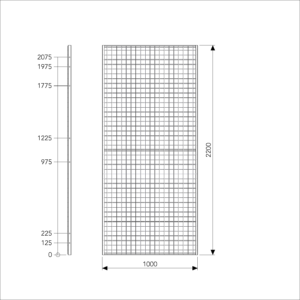

| Art. Nr | Components | Height (mm) | Width (mm) | Mesh size (mm) | Frame (mm) |
|---|---|---|---|---|---|
| 36080101 | Panel UX550 2200x800 | 2200 | 800 | 50x50 | 30x20 |
| 36070101 | Panel UX550 2200x700 | 2200 | 700 | 50x50 | 30x20 |
| 36030101 | Panel UX550 2200x300 | 2200 | 300 | 50x50 | 30x20 |
| 36150101 | Panel UX550 2200x1500 | 2200 | 1500 | 50x50 | 30x20 |
| 36020101 | Panel UX550 2200x200 | 2200 | 200 | 50x50 | 30x20 |
| 36100101 | Panel UX550 2200x1000 | 2200 | 1000 | 50x50 | 30x20 |
| 36120101 | Panel UX550 2200x1200 | 2200 | 1200 | 50x50 | 30x20 |
Finish on panels, posts and powder coated accessories has the last figure variants in ART. NO.
"1" = RAL 7037 Dusty Grey; "2" RAL 1018 Zink Yellow; "5" All other RAL colours or cut/welded; "6" RAL 9005 Jet Black, "8" Hot dip galvanized
