Panel UX450 Partitioning
Panel UX 450 is available in 2 heights, 2200 mm and 800 mm, and in 8 widths between 200 mm up to 1500 mm. The mesh, constructed from press welded 3x3.75 mm wires with mesh aperture 50x50 mm, is welded to a 30x20 mm tubular frame for added strength. The system is fully demountable and relocatable. Panels are supplied powder coated as standard with a grey RAL 7037 finish, however other RAL colours are available upon request. Panels can also be supplied hot dip galvanized for external use or in cold storage areas.
Variants
Finish on panels, posts and powder coated accessories has the last figure variants in ART. NO.
"1" = RAL 7037 Dusty Grey; "2" RAL 1018 Zink Yellow; "5" All other RAL colours or cut/welded; "6" RAL 9005 Jet Black, "8" Hot dip galvanized
| Art. Nr | Components | Width (mm) | Mesh size (mm) | Frame (mm) |
|---|---|---|---|---|
| 36080011 | Panel UX450 800x800 | 800 | 50x50 | 30x20 |
| 36070011 | Panel UX450 800x700 | 700 | 50x50 | 30x20 |
| 36050011 | Panel UX450 800x500 | 500 | 50x50 | 30x20 |
| 36020011 | Panel UX450 800x200 | 200 | 50x50 | 30x20 |
| 36030011 | Panel UX450 800x300 | 300 | 50x50 | 30x20 |
| 36118011 | Panel UX450 800x1180 | 1180 | 50x50 | 30x20 |
| 36120011 | Panel UX450 800x1200 | 1200 | 50x50 | 30x20 |
| 36150011 | Panel UX450 800x1500 | 1500 | 50x50 | 30x20 |

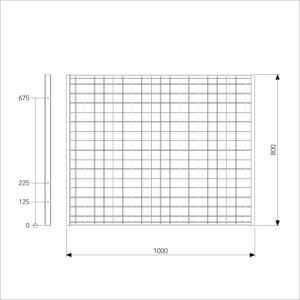

| 36100011 | Panel UX450 800x1000 | 1000 | 50x50 | 30x20 |
Finish on panels, posts and powder coated accessories has the last figure variants in ART. NO.
"1" = RAL 7037 Dusty Grey; "2" RAL 1018 Zink Yellow; "5" All other RAL colours or cut/welded; "6" RAL 9005 Jet Black, "8" Hot dip galvanized
| Art. Nr | Components | Width (mm) | Mesh size (mm) | Frame (mm) |
|---|---|---|---|---|
| 36080001 | Panel UX450 2200x800 | 800 | 50x50 | 30x20 |
| 36050001 | Panel UX450 2200x500 | 500 | 50x50 | 30x20 |
| 36070001 | Panel UX450 2200x700 | 700 | 50x50 | 30x20 |
| 36020001 | Panel UX450 2200x200 | 200 | 50x50 | 30x20 |
| 36030001 | Panel UX450 2200x300 | 300 | 50x50 | 30x20 |
| 36120001 | Panel UX450 2200x1200 | 1200 | 50x50 | 30x20 |
| 36150001 | Panel UX450 2200x1500 | 1500 | 50x50 | 30x20 |

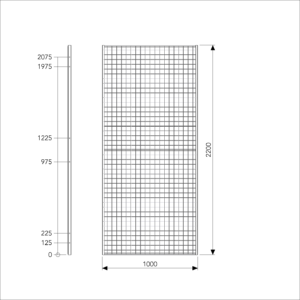

| 36100001 | Panel UX450 2200x1000 | 1000 | 50x50 | 30x20 |
